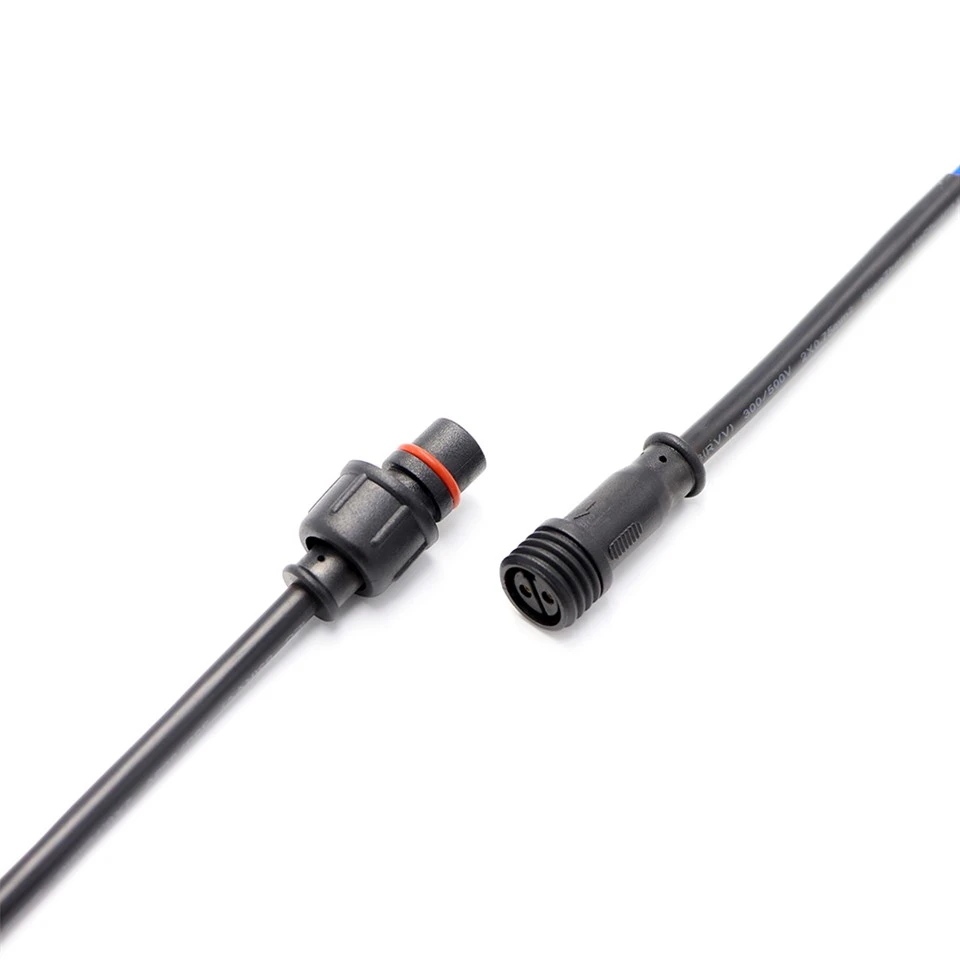

M14 2 Pin Threaded Waterproof Connector IP67

M14 2-pin threaded connector yog qhov sib txuas siab dua tam sim no rau LED teeb pom kev zoo, muaj hluav taws xob faib hluav taws xob, thiab cov khoom siv sab nraum zoov xav tau 8A / 250V AC mov. M14 × 1.0 xov muab kev ruaj ntseg xauv hauv kev co. Kev ua haujlwm hluav taws xob: tiv thaiv qis dua lossis sib npaug ntawm 10mΩ, rwb thaiv tsev Ntau dua lossis sib npaug ntawm 500MΩ ntawm DC 500V, dielectric tiv taus 1.5kV AC - ruaj khov tom qab 1,500 mating cycles. IP67 sealing nrog npib tsib xee-plated tooj dag pins thiab PVC tsho ua kom muaj kev ua haujlwm ntawm -20℃txog +85℃hauv qhov chaw ntub dej lossis plua plav. Max cable OD 7.0 hli. Parallel circuit txhawb nqa daisy-chained thaiv. Nqi-zoo rau kev ntim khoom; kev cai cable ntev thiab xim muaj rau OEM kev koom ua ke.

Xa kev nug

Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m14 2 pin threaded waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

Technical Specifications

Parameter	Specification
Kev ntsuas hluav taws xob	AC 250 V
Tam sim no R ating	Tsawg dua lossis sib npaug li 8A
Lub sijhawm plug	1500
Max Cable OD	Tsawg dua los yog sib npaug li 7.0mm
Cov qauv Circuit Court	Parallel
Tiv tauj Resistance	10mΩ
InsulationStructure	500MΩat DC 500V
Voltage endurance ntawm chav tsev kub	1.5 KV TSI
TemperatureRating	-20℃~ +85 degree
Waterproof Level	IP67

Khoom Specifications

Parameter	Specification
Hlau Khoom	PVC, Roj Hmab
Jack Khoom	PVC
Pin Khoom	Nickle{0}}plated tooj dag
Lub nplhaib sealing	Roj hmab

Product Engineering Drawing

Core Configuration Diagram

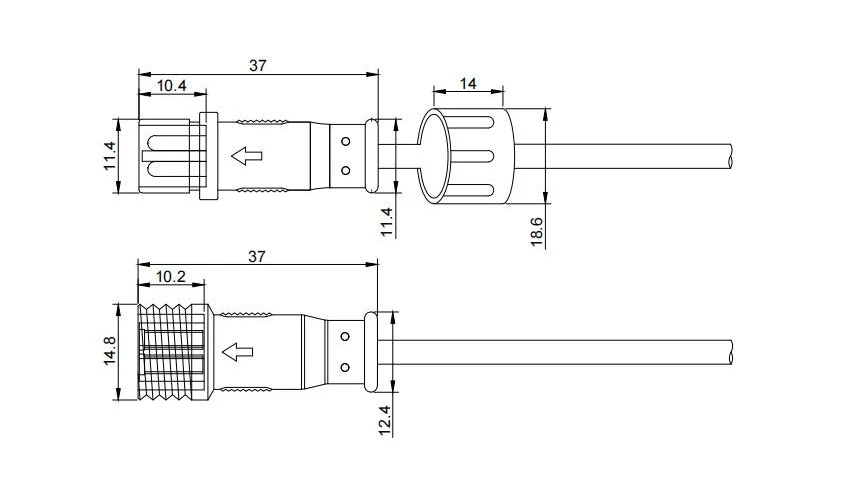

Dimensional Drawing

Daim duab kos duab muab cov ntaub ntawv tseem ceeb ntawm ib qho txuas nrog CAD extract. Txiv neej ntsaws tag nrho ntev 37.0mm, mating xov ntev 10.4mm, nrog M14 × 1.0 xov daim ntawv. Poj niam receptacle: mating xov qhov tob 11.4mm, vaj huam sib luag txiv ntseej dav 14.0mm hla flats. Daim ntawv qhia kev teeb tsa tseem ceeb qhia rau 2-pin: 8A ntawm 250V AC. Kev kam rau ua raws li ISO 2768-m. Max cable OD 7.0 hli. PDF/DWG muaj rau CAD kev koom ua ke. Txheeb xyuas cov xov txuas thiab foob compression thaum sib dhos.

FAQ

Q1: Cov kev ntsuas hluav taws xob twg muaj?

A1: Peb series npog ntau yam - los ntawm 3A / 110V rau compact sensors thiab LED teeb pom kev zoo, mus txog 20A / 250V rau hnyav- lub luag haujlwm muaj zog. Txhua tus qauv muaj qhov tshwj xeeb ultra-kev tiv thaiv qis (tsawg dua lossis sib npaug rau 10mΩ) thiab 1,500 mating cycles.

Q2: Koj ua li cas kom zoo ua ntej xa zaub mov?

A2: Txhua pawg tau dhau 100% kev ntsuas hluav taws xob (kev tiv thaiv tiv thaiv, rwb thaiv tsev, dielectric tiv taus) ntxiv rau kev kuaj pom. Peb tuav tag nrho traceability los ntawm raw khoom nkag mus rau cov khoom tiav.
