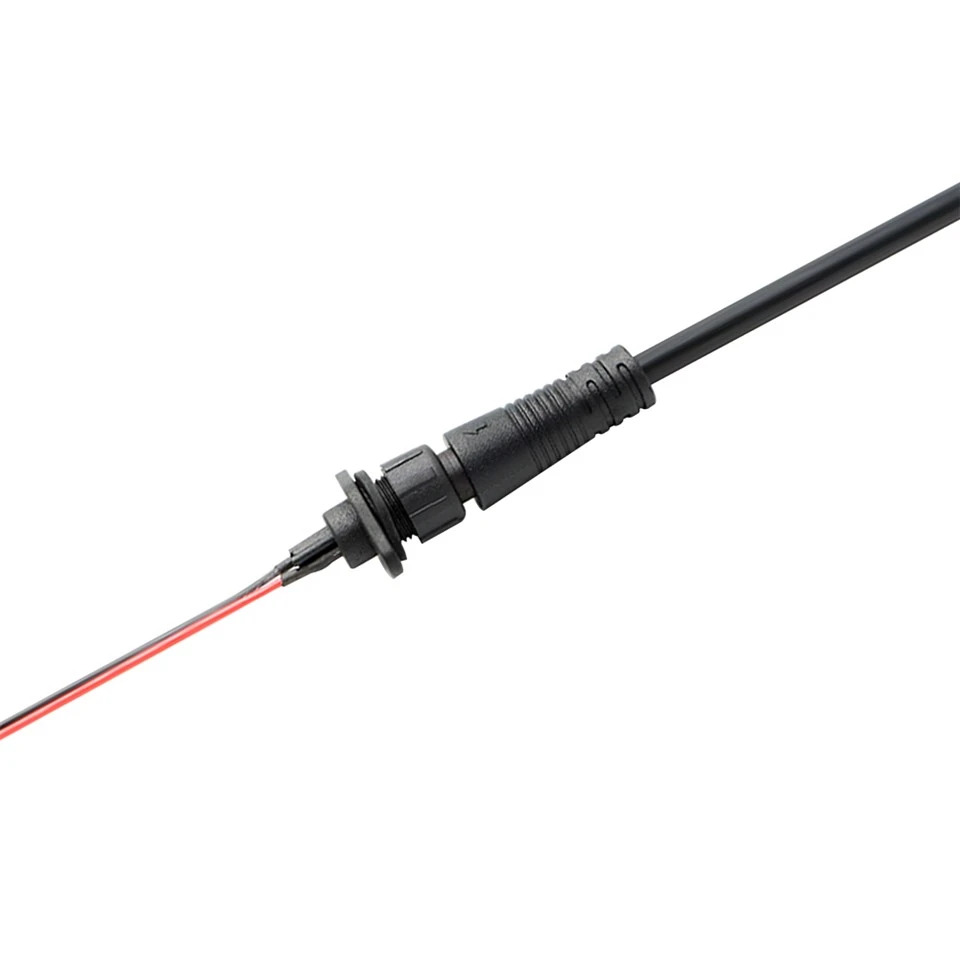

M12 3 Pin Threaded Vaj Huam Sib Luag Mount Waterproof Connector IP67
Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m12 3 pin threaded vaj huam sib luag mount waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Specifications
|
Parameter |
Specification |
|
Kev ntsuas hluav taws xob |
AC 250 V |
|
Tam sim no R ating |
Tsawg dua lossis sib npaug li 6A |
|
Lub sijhawm plug |
1500 |
|
Max Cable OD |
Tsawg dua los yog sib npaug li 6.0mm |
|
Cov qauv Circuit Court |
Parallel |
|
Tiv tauj Resistance |
10mΩ |
|
InsulationStructure |
500MΩat DC 500V |
|
Voltage endurance ntawm chav tsev kub |
1.5 KV TSI |
|
TemperatureRating |
-20℃~ +85 degree |
|
Waterproof Level |
IP67 |
Khoom Specifications
|
Parameter |
Specification |
|
Hlau Khoom |
PVC, Roj Hmab |
|
Jack Khoom |
PVC |
|
Pin Khoom |
Nickle{0}}plated tooj dag |
|
Lub nplhaib sealing |
Roj hmab |

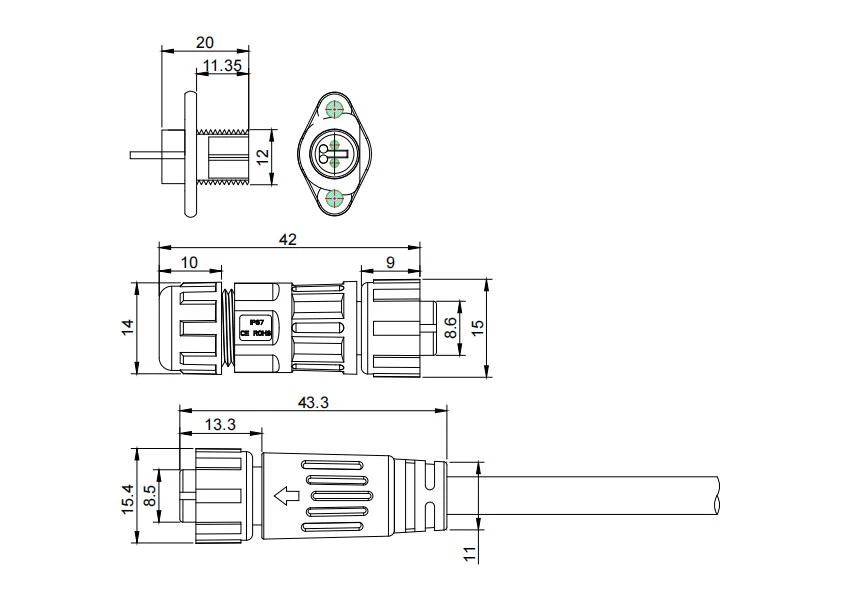

Product Engineering Drawing
Daim duab kos duab muab cov ntaub ntawv tseem ceeb ntawm ib qho txuas nrog CAD extract. Txiv neej vaj huam sib luag-mount plug: tag nrho ntev 42.0mm, M12 × 1.0 bushing xov ntev 10.0mm, vaj huam sib luag-sab xov 9.0mm, nrog mounting txiv ntseej dav 15.0mm thiab sealing washer zawj ntawm 13.3mm. Poj niam receptacle: mating xov qhov tob 11.0mm, vaj huam sib luag mounting xov 8.5mm, nrog cable nkag txais mus txog 6.0mm OD. Daim ntawv qhia kev teeb tsa tseem ceeb qhia tias qhov ntsuas tam sim no txo qis nrog tus lej suav - rau qhov no 3-pin variant, 6A ntawm 250V AC siv. Kev kam rau ua raws li ISO 2768-m. PDF/DWG muaj rau CAD kev koom ua ke. Tshawb xyuas vaj huam sib luag thickness thiab lub tshuab ntxhua khaub ncaws kom tswj tau qhov ntsuas IP67.
Khoom nthuav dav

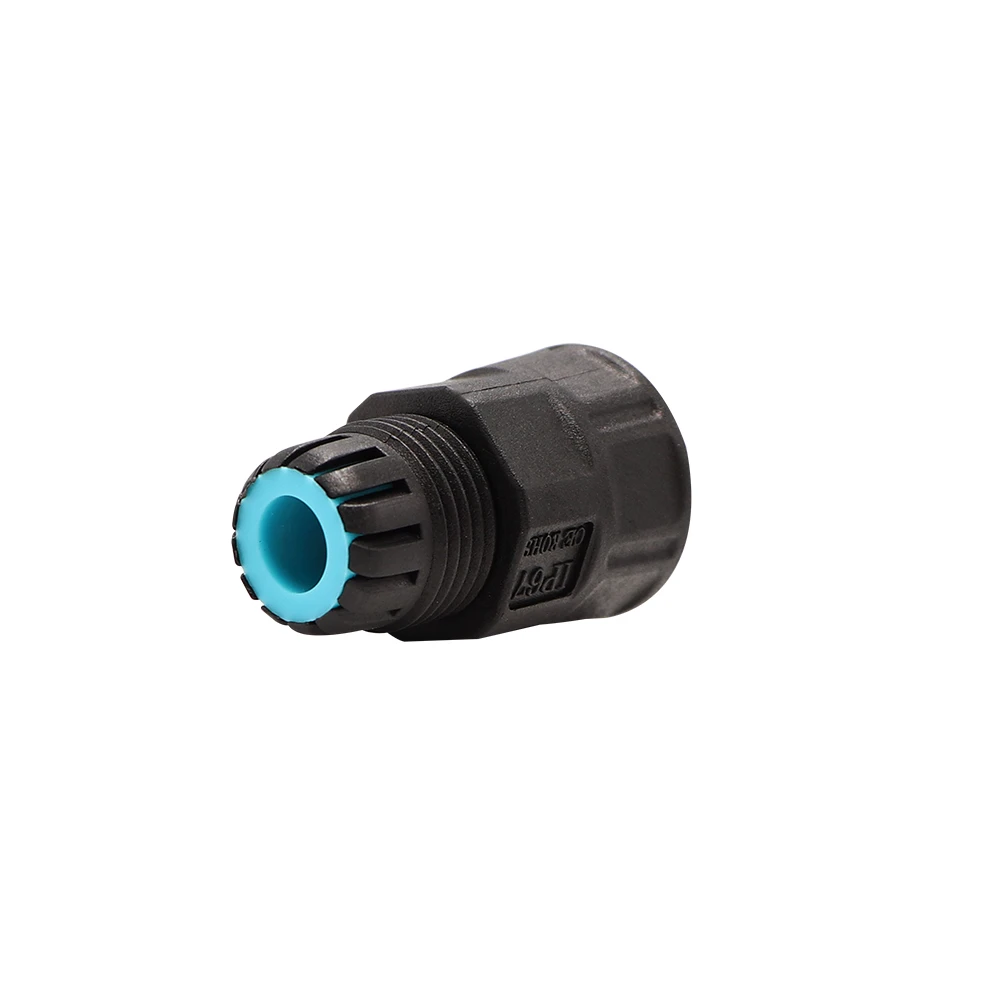

Poj niam Receptacle nrog Sky-Blue Interface
Daim duab no qhia tau hais tias tus poj niam receptacle nrog nws qhov txawv ntawm lub ntuj-xiav mating lub ntsej muag - ib qho kev qhia pom rau lub vaj huam sib luag-mount series. Peb lub qhov (socket) hu (1.0mm txoj kab uas hla) yog teem rau hauv tus qauv M12 qauv. Lub nplhaib xiav qhia qhov txawv ntawm lub vaj huam sib luag-mount variants los ntawm hom kab hluav taws xob, pab kev txheeb xyuas ceev ceev hauv cov neeg coob coob.

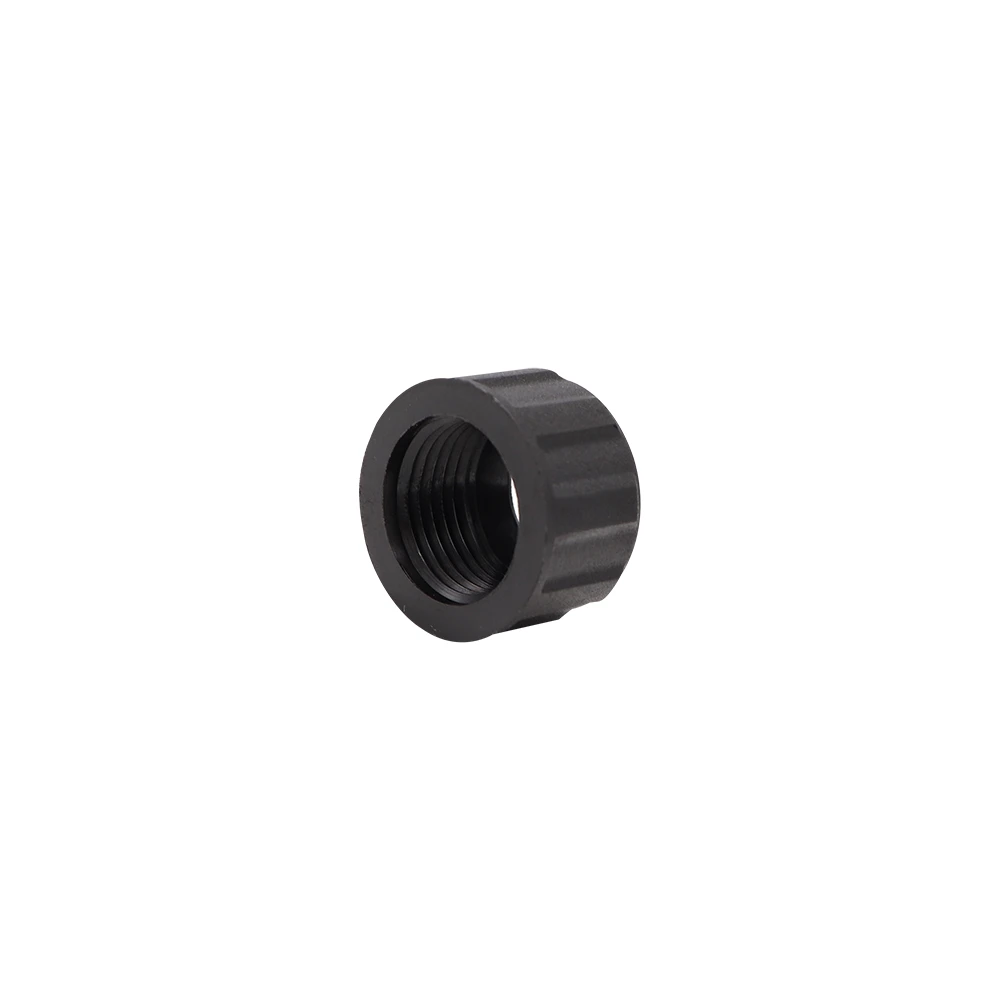

Mounting Accessories
Daim duab no qhia tau hais tias tag nrho cov mounting accessory set: threaded locking txiv ntseej, lub vaj huam sib luag sealing washer (paj rwb), thiab sab hauv O-ring. Tag nrho cov yog dub PVC / roj hmab kom phim lub connector vaj tse. Lub tshuab ntxhua khaub ncaws ua kom lub vaj huam sib luag-sab sealing thaum lub txiv ntoo yog torqued rau spec. Khaws cov khoom no ua ke thaum lub sijhawm teeb tsa.
