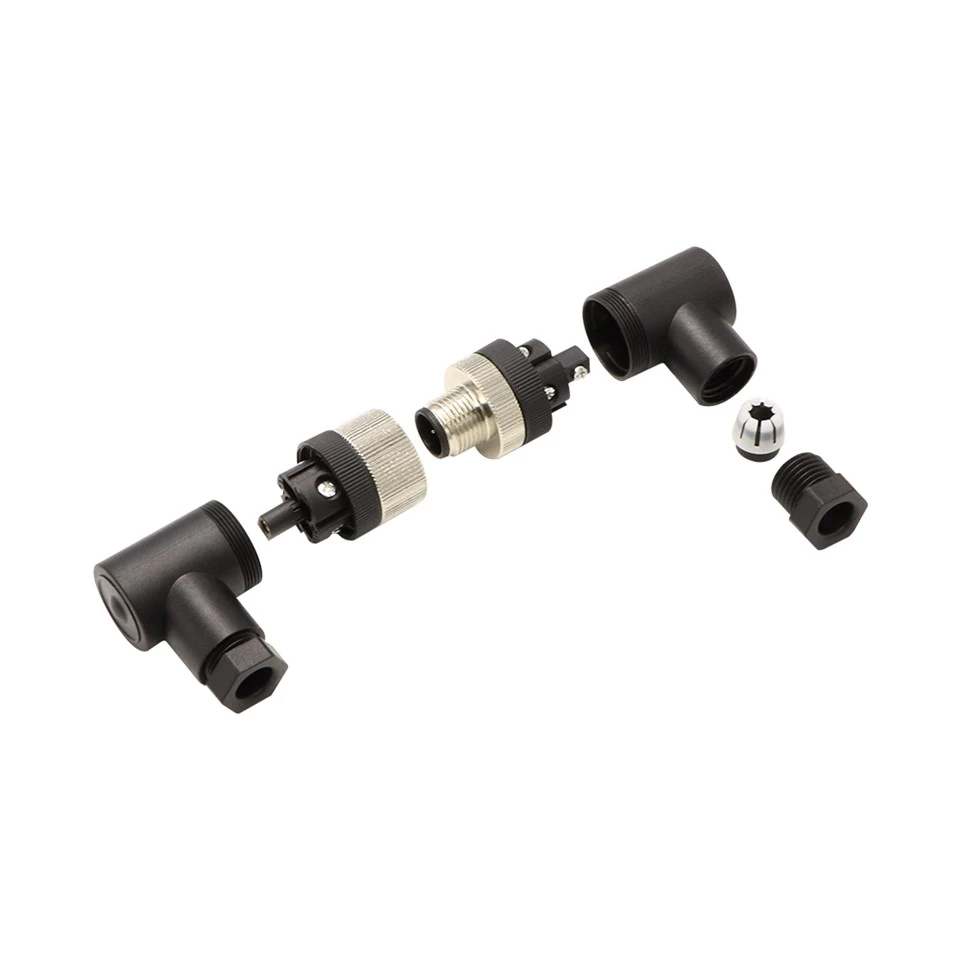

M12 2 Core Quick Assembly Waterproof Connector IP67
Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm m12 2 core ceev sib dhos waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Specifications
|
Parameter |
Specification |
|
Kev ntsuas hluav taws xob |
AC 250 V |
|
Tam sim no R ating |
Tsawg dua lossis sib npaug li 6A |
|
Lub sijhawm plug |
1500 |
|
Max Cable OD |
Tsawg dua los yog sib npaug li 6.0mm |
|
Cov qauv Circuit Court |
Parallel |
|
Tiv tauj Resistance |
10mΩ |
|
InsulationStructure |
500MΩat DC 500V |
|
Voltage endurance ntawm chav tsev kub |
1.5 KV TSI |
|
TemperatureRating |
-20℃~ +85 degree |
|
Waterproof Level |
IP67 |
Khoom Specifications
|
Parameter |
Specification |
|
Hlau Khoom |
PVC, Roj Hmab |
|
Jack Khoom |
PVC |
|
Pin Khoom |
Nickle{0}}plated tooj dag |
|
Lub nplhaib sealing |
Roj hmab |

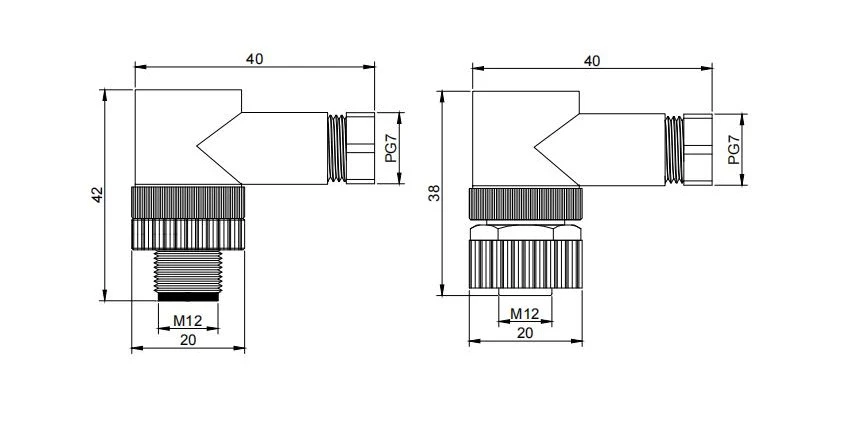

Product Engineering Drawing
Daim duab kos duab muab cov ntaub ntawv tseem ceeb ntawm ib qho txuas nrog CAD extract. Txiv neej plug tag nrho ntev 40.0mm; poj niam receptacle tag nrho ntev 40.0mm. Ob leeg feature M12 × 1.0 mating threads nrog qhov ntev ntawm 20.0mm. Kev sib txuas ceev ceev yog hom kev sib tsoo - tsis muaj kev sib hloov uas yuav tsum tau ua rau thawj zaug kev koom tes; lub tes tsho xauv compresses lub sab hauv O-ring rau IP67 sealing. Cable nkag txais mus txog 6.0mm OD. Kev kam rau ua raws li ISO 2768-m. PDF/DWG muaj rau CAD kev koom ua ke. Txheeb xyuas cov kab nkag qhov tob thiab foob compression thaum lub sij hawm sib dhos kom ntseeg tau tias cov dej tsis muaj dej.
Khoom nthuav dav

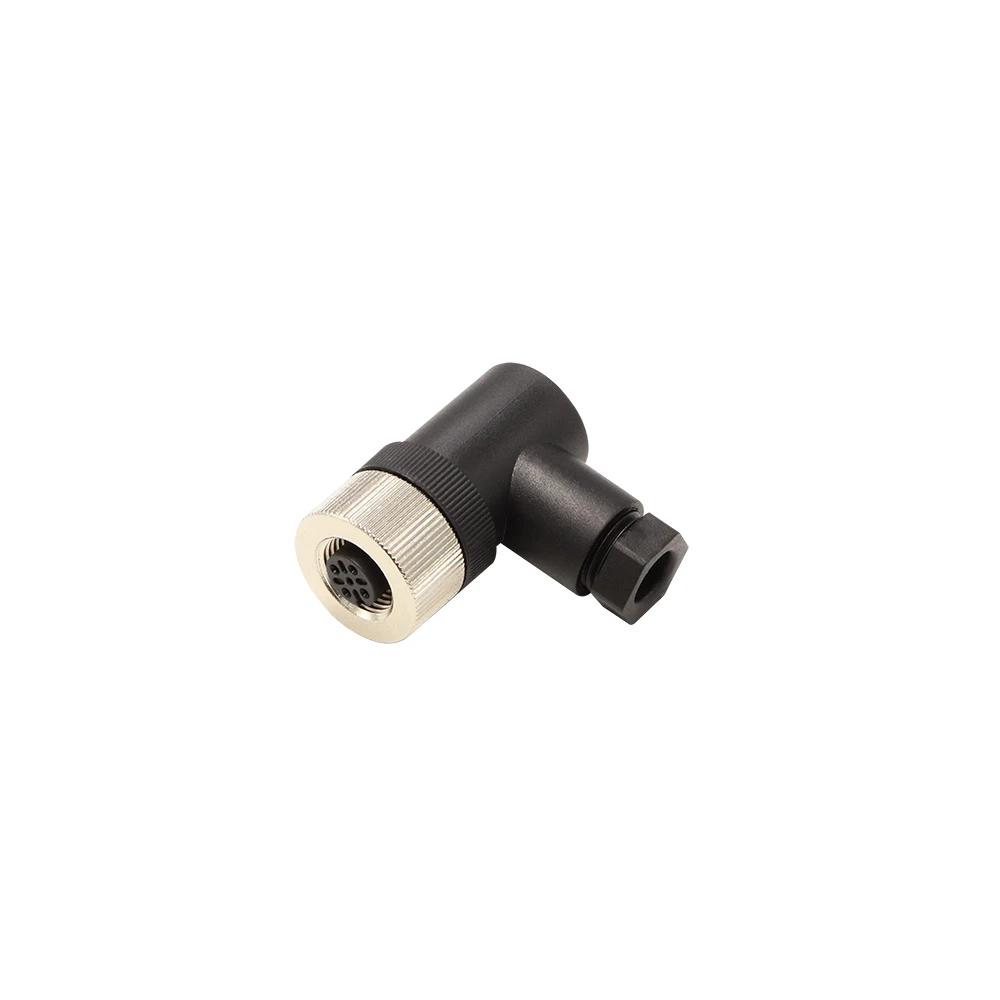

4-Pin Poj Niam Receptacle
Qhov no 45℃angled saib pom tus poj niam receptacle nrog plaub tus npib tsib xee-plated tooj dag lub qhov (1.0mm txoj kab uas hla) teem rau hauv tus qauv M12 qauv. Cov vaj tsev dub PVC thiab cov xov sab hauv (M12 × 1.0) pom. Lub sealing O-ring yog recessed hauv lub ntsej muag mating. Cov duab no pab tshawb xyuas kev sib cuag thiab xov xwm ua ntej sib dhos.

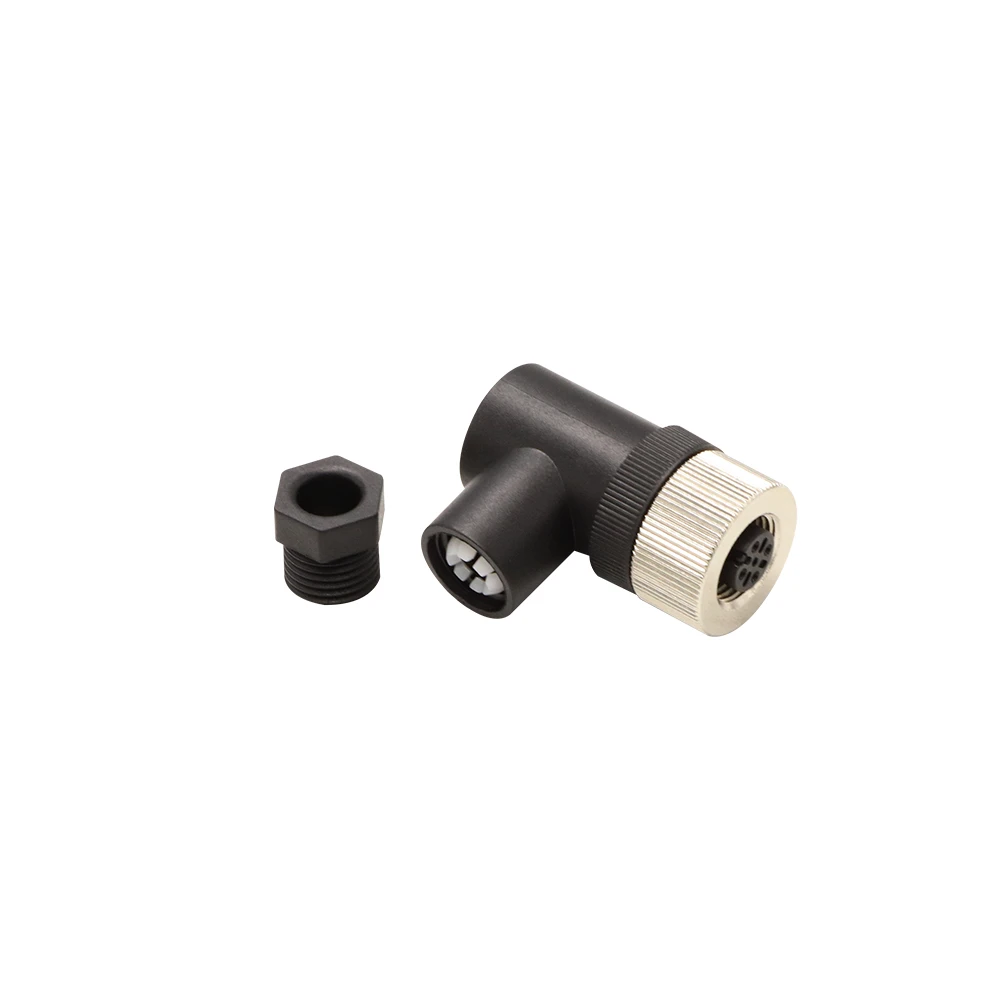

Poj niam Receptacle nrog Accessory
Daim duab no qhia txog tus poj niam receptacle nrog rau nws cov khoom tiv thaiv plua plav. Lub hau yog molded nyob rau hauv dub PVC nrog ib tug push-on haum tshaj M12 xov - tsis muaj cov cuab yeej yuav tsum tau. Thaum ntsia, nws npog cov neeg sib cuag thiab kaw los ntawm cov av thiab noo noo thaum khaws cia. Lub tether tiv thaiv kev poob. Muaj txiaj ntsig rau kev saib xyuas thaj chaw thiab kev cuam tshuam ib ntus.
