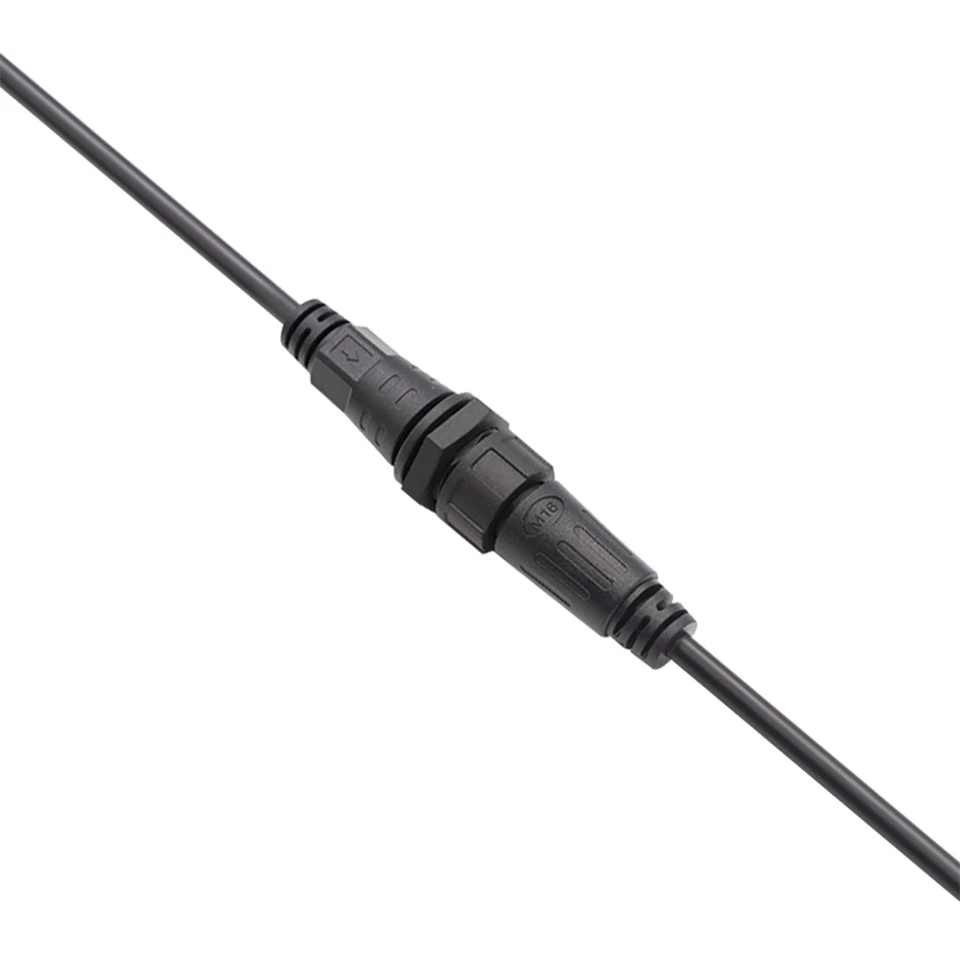

M16 4 Pin Threaded Waterproof Connector IP67

M16 4-pin yog tsom rau cov teeb pom kev hauv hiav txwv, tswj vaj huam sib luag, thiab kev teeb tsa hluav taws xob sab nraum zoov uas xav tau 6A / 250V thoob plaws ntau lub voj voog hybrid. Xov yog M16 × 1.0 - kaw nruj rau hauv qhov chaw co co zoo li gen-sets, HVAC racks, thiab dockside iav. Cov pob txha hluav taws xob zoo ib yam li cov tsev neeg: Tsawg dua lossis sib npaug ntawm 10mΩ tiv thaiv, Ntau dua lossis sib npaug ntawm 500MΩ rwb thaiv tsev ntawm DC 500V, 1.5kV dielectric, zoo rau 1,500 cycles. IP67 foob, npib tsib xee-plated pins, PVC tsho - khiav ntawm -20℃mus rau +85 degree, ntub los yog plua plav, tsis muaj teeb meem. Cable OD mus txog 8.0mm. Parallel circuit txhawb nqa daisy-chain layout. Peb tuaj yeem tweak pin configurations thiab cable sib dhos kom haum. Tus pin ntxiv muab rau koj hloov pauv ntau dua li 2- lossis 3-pin versions, yam tsis muaj kev cuam tshuam.

Xa kev nug

Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m16 4 pin threaded waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.

Technical Specifications

Parameter	Specification
Kev ntsuas hluav taws xob	AC 250 V
Tam sim no R ating	Tsawg dua lossis sib npaug li 6A
Lub sijhawm plug	1500
Max Cable OD	Tsawg dua los yog sib npaug li 8.0mm
Cov qauv Circuit Court	Parallel
Tiv tauj Resistance	10mΩ
InsulationStructure	500MΩat DC 500V
Voltage endurance ntawm chav tsev kub	1.5 KV TSI
TemperatureRating	-20℃~ +85 degree
Waterproof Level	IP67

Khoom Specifications

Parameter	Specification
Hlau Khoom	PVC, Roj Hmab
Jack Khoom	PVC
Pin Khoom	Nickle-plated tooj dag
Lub nplhaib sealing	Roj hmab

Product Engineering Drawing

Core Configuration Diagram

Dimensional Drawing

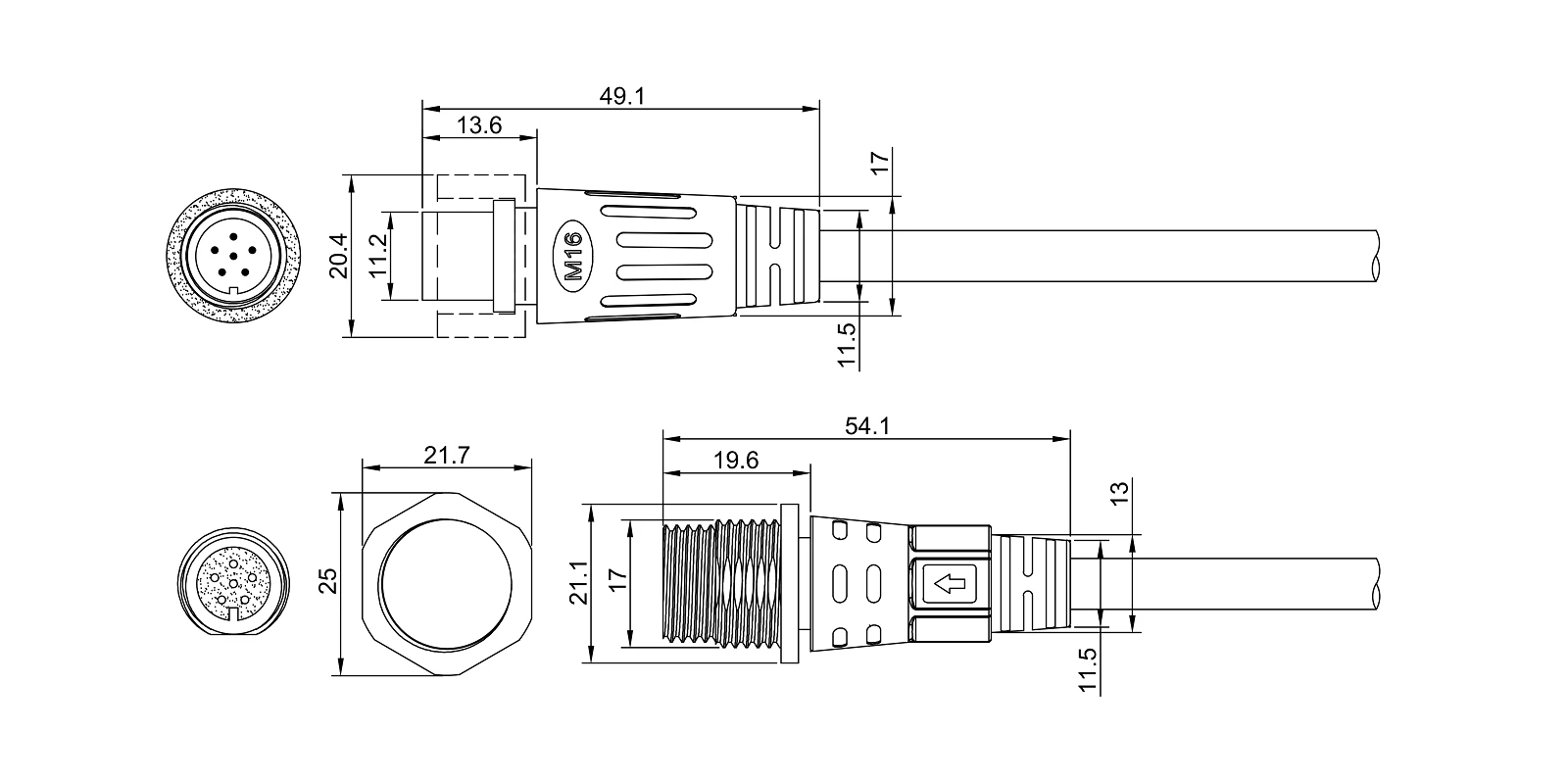

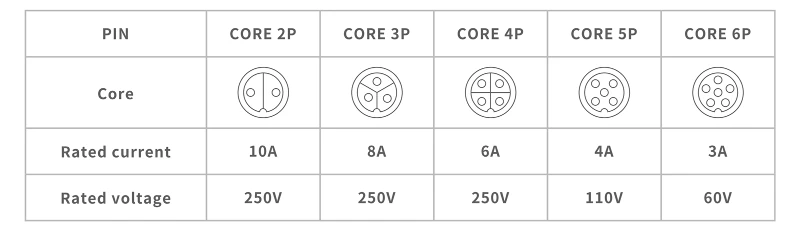

CAD muab rau peb: txiv neej plug 49.1mm ntev, mating xov 13.6mm, coupling txiv ntseej 20.4mm hla flats. Poj niam receptacle 54.1mm zuag qhia tag nrho, xov qhov tob 21.7mm, mounting txiv ntseej 21.1mm AF. M16 × 1.0 ob qhov kawg. Kev ntsuas rau 4-pin yog 6A / 250V - 2-pin ua 10A / 250V, 3-pin 8A / 250V, 5-pin 4A / 110V, 6-pin 3A / 60V. ISO 2768-m. PDF lossis DWG muaj nyob ntawm kev thov. Yog tias koj lub vaj huam sib luag thickness lossis cable nkag tsis yog tus qauv, peb tuaj yeem hloov kho qhov ntev ntawm lub tsev, xov specs ntawm lub vaj huam sib luag sab, lossis kev sib cuag nrog kev sib txuas.

Khoom nthuav dav

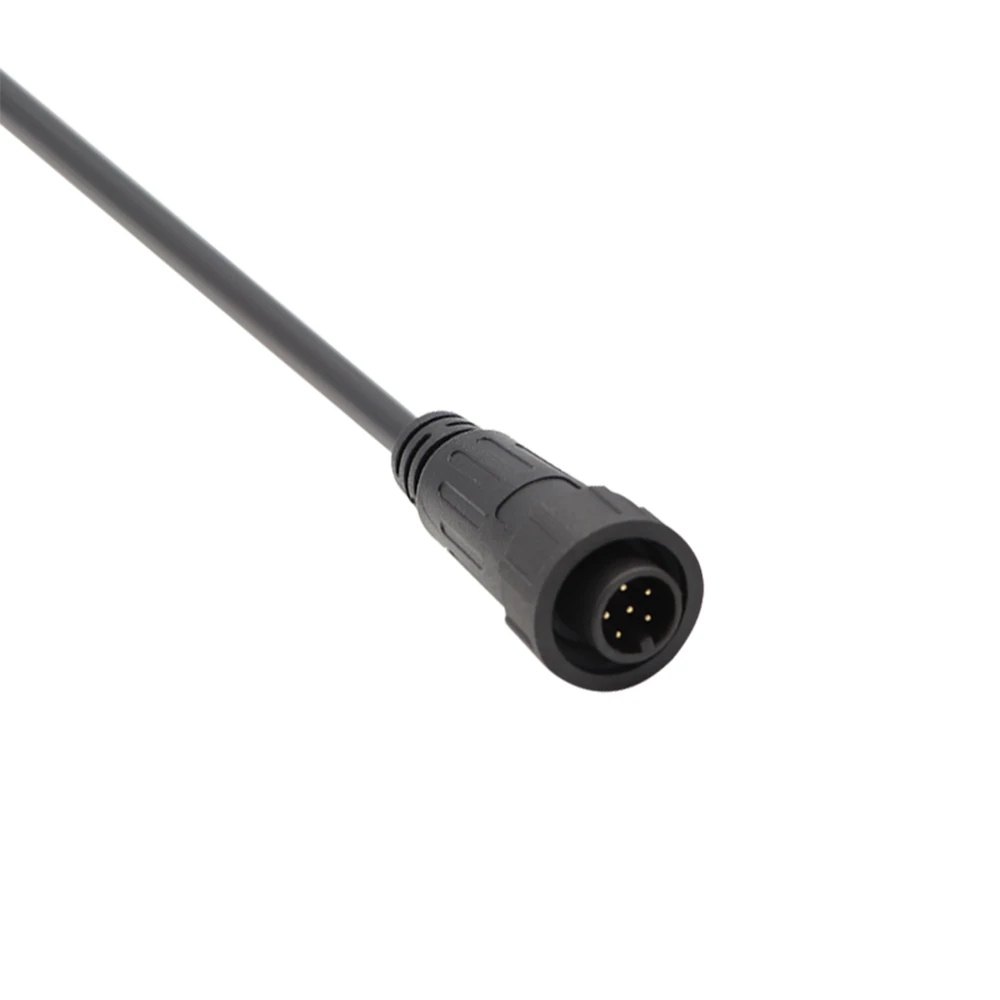

Txiv neej Plug (5-Pin Version)

Daim duab no qhia tau hais tias tus txiv neej ntsaws ntawm 5-pin variant (rau kev piav qhia), nrog tsib tus npib tsib xee-plated tooj dag hu rau hauv tus qauv M16 voj voog. Lub tsev PVC dub thiab M16 × 1.0 xov sab nraud yog pom meej. Cov duab no pab txheeb xyuas tus pin mob thiab kev taw qhia ua ntej mating.

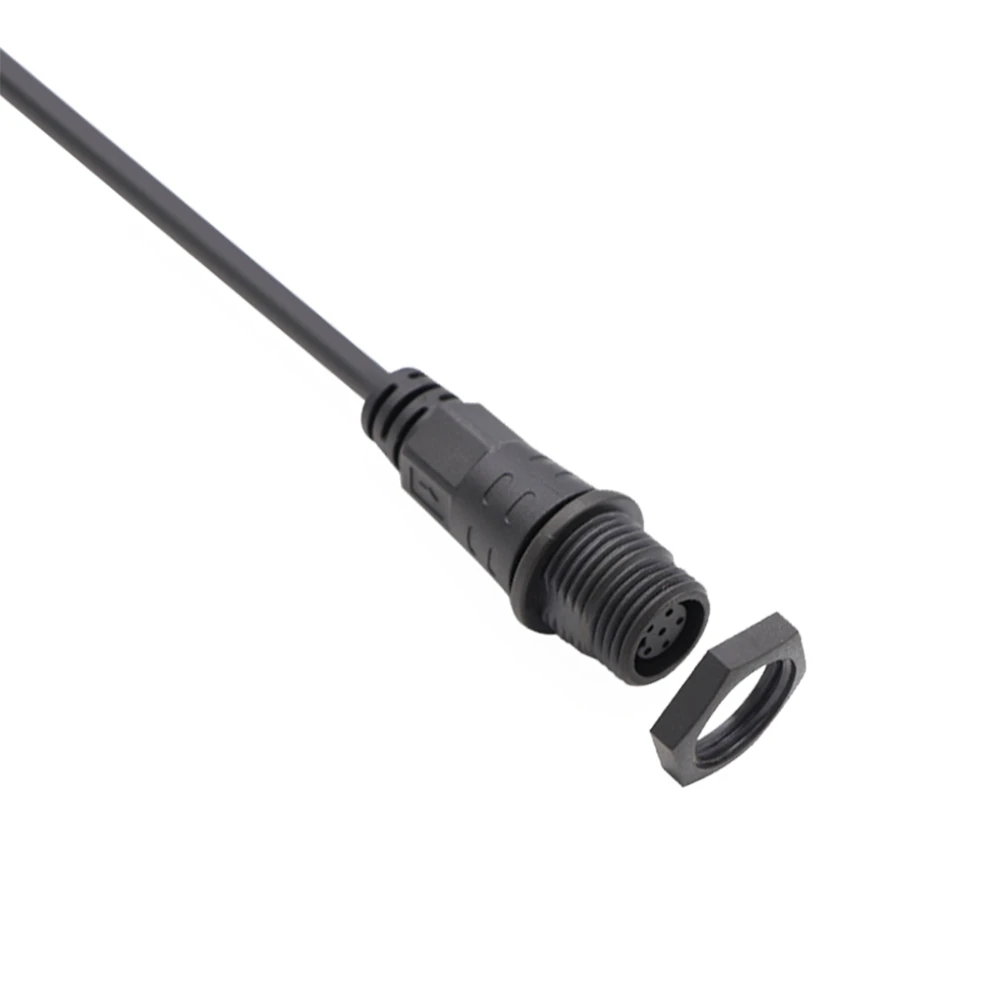

Poj niam Receptacle nrog Circular Connector Nplhaib (5-Pin Version)

Daim duab no qhia txog tus poj niam receptacle ntawm 5-pin variant (rau kev piav qhia) nrog nws lub nplhaib txuas txuas txuas. Tsib lub qhov (socket) tiv tauj thiab cov vaj tsev dub PVC pom meej meej, nrog rau M16 × 1.0 xov sab hauv. Lub nplhaib ncig muab kev txhawb zog ntxiv thiab kev sib tw thaum lub sij hawm mating. Cov duab no pab tshawb xyuas qhov kev sib cuag thiab kev sib dhos ua ke.
