M12 5 Pin Threaded Waterproof Connector IP67
Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m12 5 pin threaded waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Specifications
|
Parameter |
Specification |
|
Kev ntsuas hluav taws xob |
AC 250 V |
|
Tam sim no R ating |
Tsawg dua lossis sib npaug li 6A |
|
Lub sijhawm plug |
1500 |
|
Max Cable OD |
Tsawg dua los yog sib npaug li 6.0mm |
|
Cov qauv Circuit Court |
Parallel |
|
Tiv tauj Resistance |
10mΩ |
|
InsulationStructure |
500MΩat DC 500V |
|
Voltage endurance ntawm chav tsev kub |
1.5 KV TSI |
|
TemperatureRating |
-20℃~ +85 degree |
|
Waterproof Level |
IP67 |
Khoom Specifications
|
Parameter |
Specification |
|
Hlau Khoom |
PVC, Roj Hmab |
|
Jack Khoom |
PVC |
|
Pin Khoom |
Nickle{0}}plated tooj dag |
|
Lub nplhaib sealing |
Roj hmab |
Product Engineering Drawing

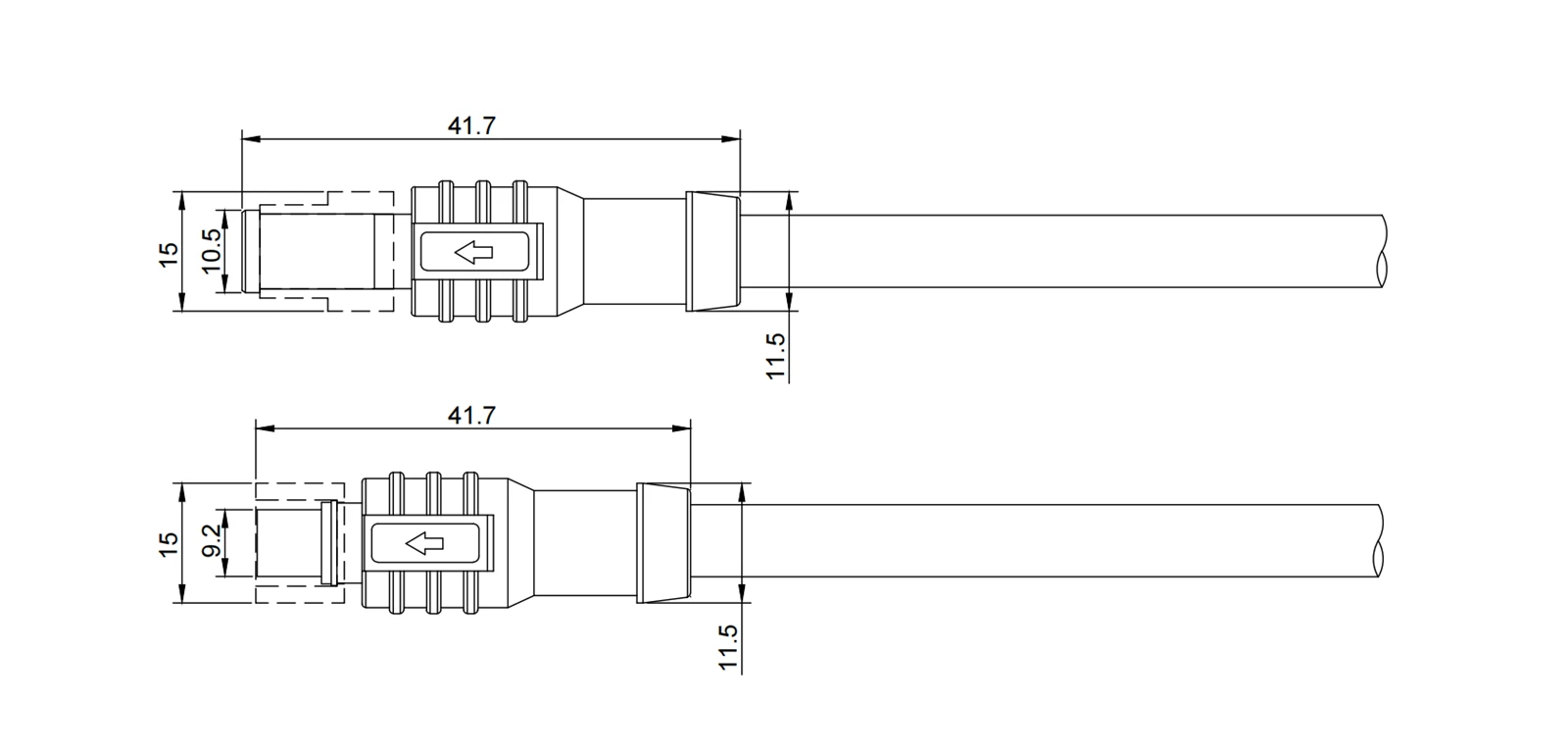

Daim duab kos duab muab tag nrho cov ntaub ntawv tseem ceeb ntawm ib qho kev txuas CAD extract. Txiv neej plug tag nrho ntev yog 41.7mm (tsis suav cable khau raj), nrog mating xov ntev 15.0mm thiab vaj huam sib luag -sab xov ntev 11.5mm. Poj niam receptacle tag nrho ntev kuj 41.7mm, featuring xov qhov tob 10.5mm ntawm lub ntsej muag mating thiab 9.2mm nyob rau sab mounting - nco ntsoov lub asymmetry ntawm txiv neej thiab poj niam xov ntev. Kev sib sau ua ke tag nrho txo rau hauv lub hnab ntawv. Tag nrho cov ntaub ntawv xov yog M12 × 1.0; Kev kam rau ua raws li ISO 2768-m. Daim duab kos kuj qhia txog lub vaj huam sib luag txiav tawm txoj kab uas hla thiab polarizing txoj haujlwm tseem ceeb. PDF/DWG muaj rau CAD kev koom ua ke. Txheeb xyuas qhov 11.5mm thiab 9.2mm xov qhov ntev thaum tsim vaj huam sib luag clearance, raws li tus txiv neej sab yuav tsum tau sib sib zog nqus kev koom tes tshaj lub receptacle mounting sab.
Khoom nthuav dav
Hlau Mating Interface (Txiv neej thiab poj niam txuas)

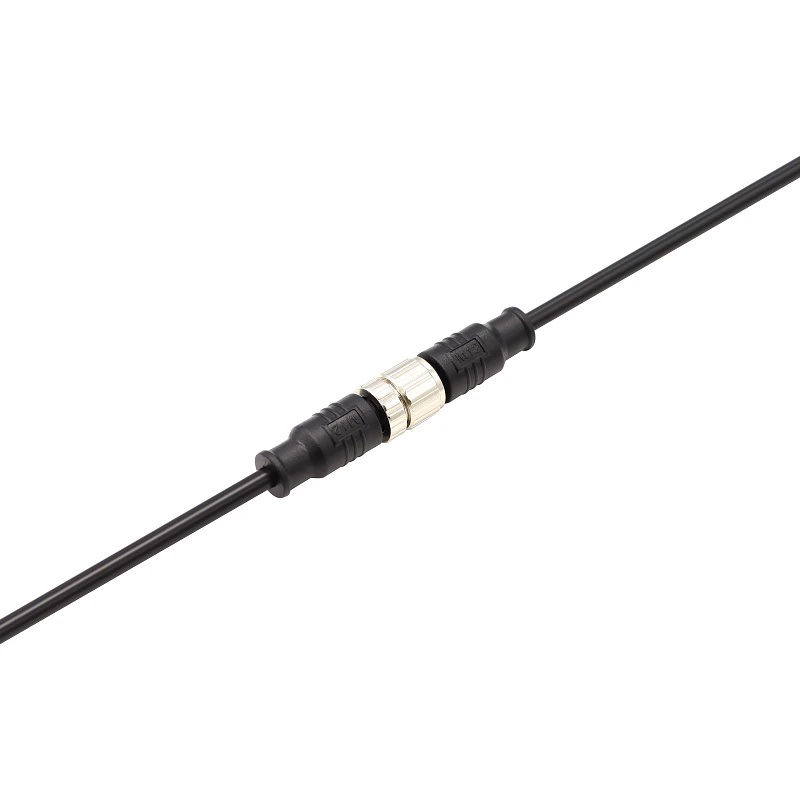

Daim duab no tsom rau ntawm qhov sib txuas sib txuas, qhia txog kev sib cuag ntawm cov hlau-rau-hlau ntawm cov xov txuas txuas ntawm cov txiv ntoo thiab lub plhaub ntim khoom. Cov nickel-plated tooj dag threads tau koom nrog tag nrho, qhia tias tsis muaj qhov sib txawv ntawm qhov sib koom ua ke - qhov no ua kom ob qho tib si rigidity thiab kev tiv thaiv tsis tu ncua tiv thaiv electromagnetic cuam tshuam. Lub nplhaib sealing yog compressed tusyees nyob ib ncig ntawm lub circumference, pom raws li ib tug nyias maub kab ntawm mating seam. Cov duab no pom zoo kom haum thiab ua tiav, muaj txiaj ntsig zoo rau kev tshuaj xyuas ua ntej kev xa tawm.
Txiv neej thiab poj niam sib cais

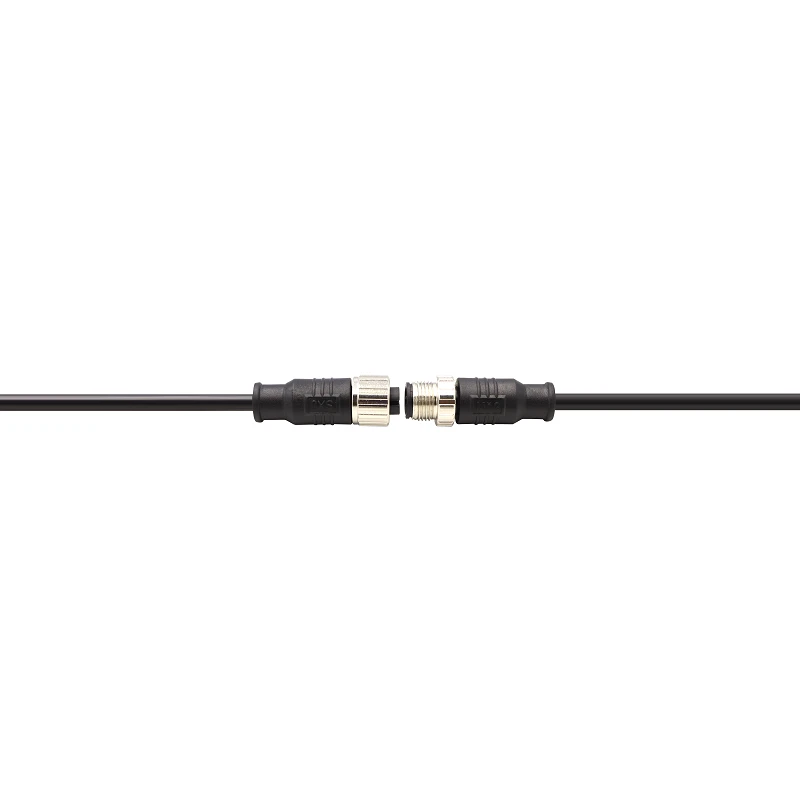

Daim duab no qhia tau hais tias tus txiv neej ntsaws (sab laug) thiab poj niam receptacle (txoj cai) sib cais, nrog ob qho tib si ntawm M12 × 1.0 hlau threads kom meej meej. Cov txiv neej xov yog machined los ntawm cov khoom tooj dag nrog npib tsib xee plating; tus poj niam hauv xov qhia tau zoo tib yam plating. Tsis siv cov xov yas - tag nrho cov khoom siv thauj khoom thiab cov khoom sib khi yog xim hlau, ua kom lub zog ruaj khov thiab tiv taus kev sib tsoo. Lub O-ring ntawm tus txiv neej sab yog pom tom qab xov hauv paus. Cov duab no yog ib qho kev siv ceev ceev rau xov xwm thiab kev muab khi ua ntej sib dhos.
