M12 3 Pin Threaded Waterproof Connector IP67
Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m12 3 pin threaded waterproof connector ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Specifications
|
Parameter |
Specification |
|
Kev ntsuas hluav taws xob |
AC 250 V |
|
Tam sim no R ating |
Tsawg dua lossis sib npaug li 6A |
|
Lub sijhawm plug |
1500 |
|
Max Cable OD |
Tsawg dua los yog sib npaug li 6.0mm |
|
Cov qauv Circuit Court |
Parallel |
|
Tiv tauj Resistance |
10mΩ |
|
InsulationStructure |
500MΩat DC 500V |
|
Voltage endurance ntawm chav tsev kub |
1.5 KV TSI |
|
TemperatureRating |
-20℃~ +85 degree |
|
Waterproof Level |
IP67 |
Khoom Specifications
|
Parameter |
Specification |
|
Hlau Khoom |
PVC, Roj Hmab |
|
Jack Khoom |
PVC |
|
Pin Khoom |
Nickle{0}}plated tooj dag |
|
Lub nplhaib sealing |
Roj hmab |
Product Engineering Drawing

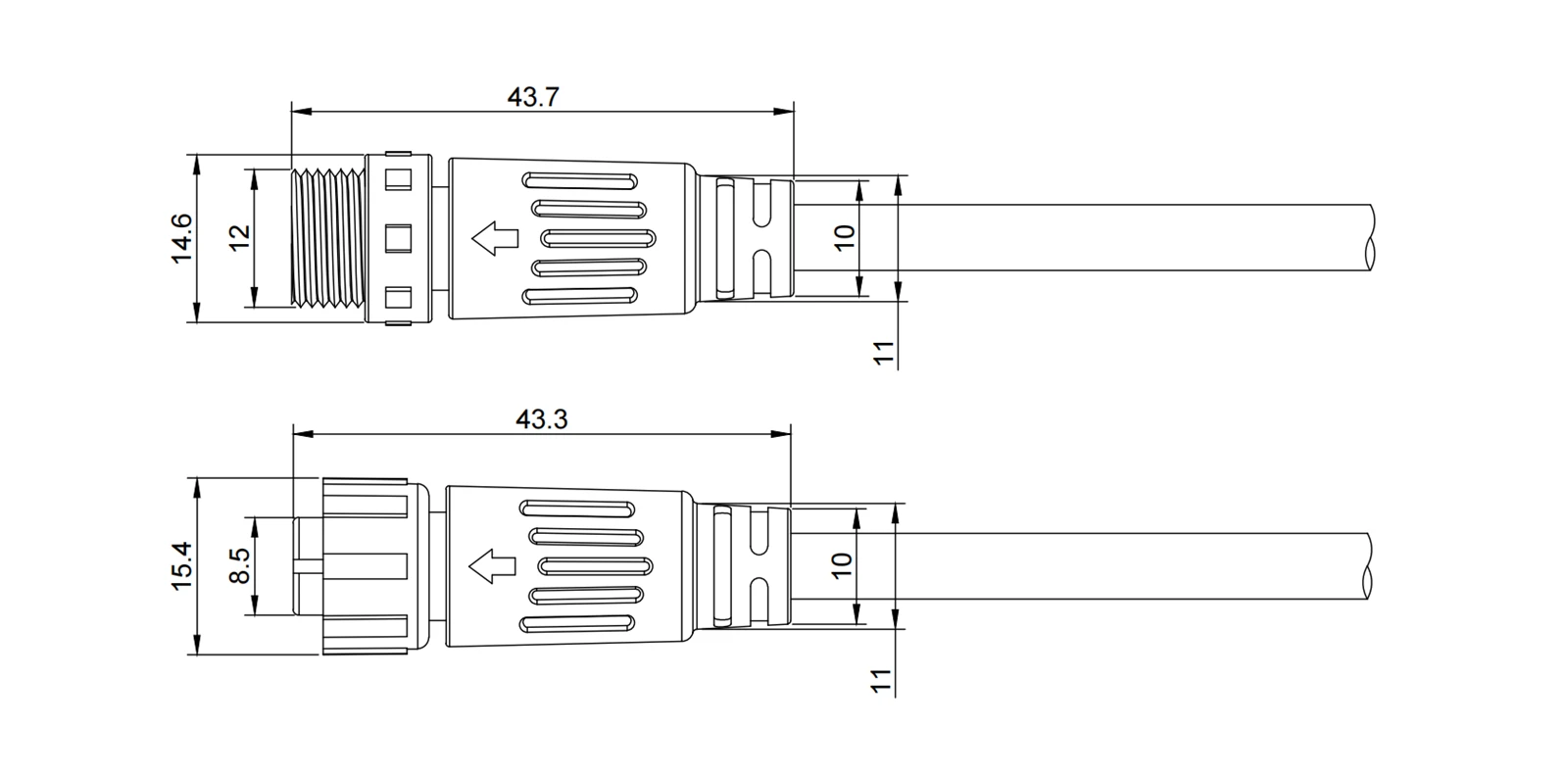

Daim duab kos duab muab cov ntaub ntawv tseem ceeb ntawm ib qho txuas nrog CAD extract. Txiv neej plug tag nrho ntev 43.7mm, nrog mating xov ntev 14.6mm thiab vaj huam sib luag -sab xov 12.0mm; cable nkag txais mus txog 6.0mm OD. Poj niam receptacle tag nrho ntev 43.3mm, featuring xov qhov tob 15.4mm ntawm mating lub ntsej muag thiab 8.5mm ntawm mounting sab - nco ntsoov lub asymmetry ntawm txiv neej / poj niam kev koom tes ntev. Kev sib sau ua ke tag nrho txo rau hauv lub hnab ntawv. Tag nrho cov xov yog M12 × 1.0; Kev kam rau ua raws li ISO 2768-m. Polarizing txoj hauj lwm tseem ceeb yog cim los xyuas kom meej kev taw qhia. PDF/DWG muaj rau CAD kev koom ua ke. Tshawb xyuas qhov 14.6mm thiab 15.4mm kev sib koom ua ke qhov tob thaum xam lub vaj huam sib luag tshem tawm thiab xov sib tshooj.
Khoom nthuav dav
Txiv neej Plug Pem Hauv Ntej Saib (3-Pin, Dub PVC Vaj Tsev)

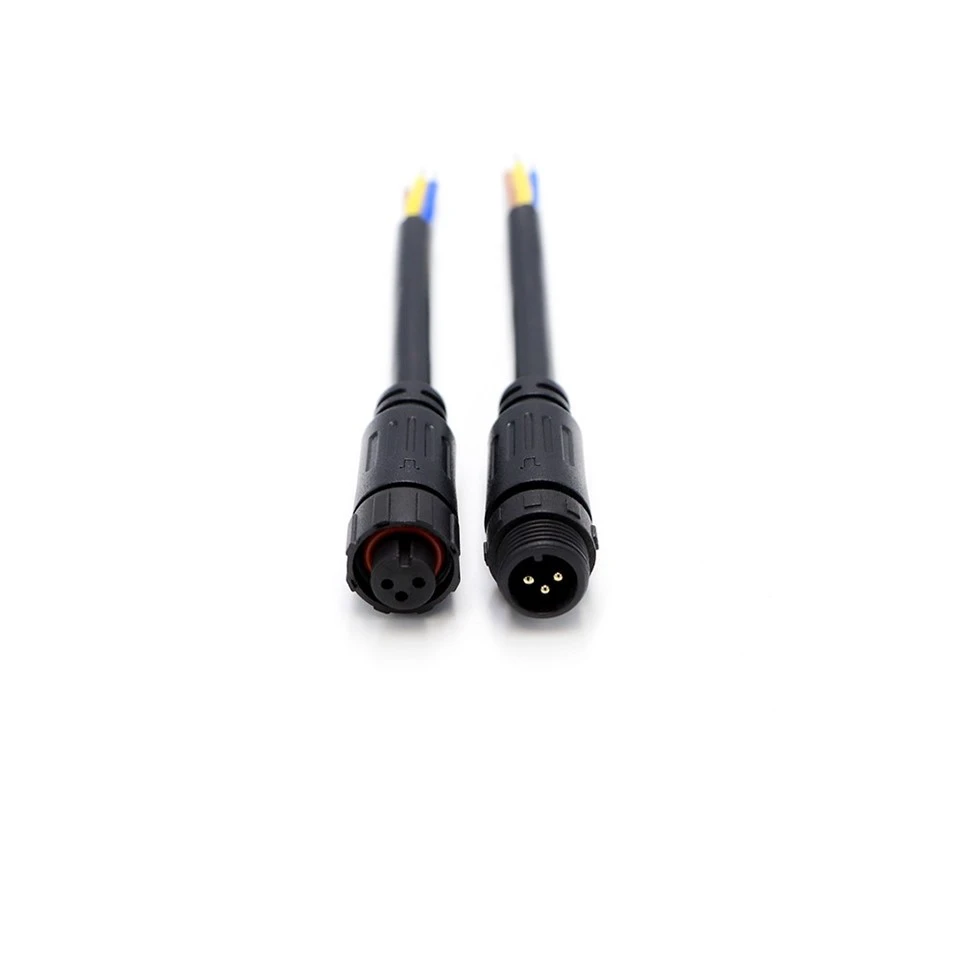

Qhov no pem hauv ntej- lub ntsej muag saib pom cov txiv neej ntsaws nrog peb lub npib tsib xee-plated tooj dag hu tau teem rau hauv tus qauv M12 ncig qauv (1.0 hli txoj kab uas hla pins). Dub PVC molded vaj tsev muab kev tiv thaiv txhua yam thiab hluav taws xob rwb thaiv tsev; qhov tseem ceeb ntawm polarizing yog pom ntawm 12 teev, kom ntseeg tau tias kev taw qhia raug thaum mating. Lub ntsej muag flush tsim tso cai yooj yim ntxuav cov khib nyiab ua ntej kev sib txuas. Tsis muaj lub nplhaib sealing raug nthuav tawm ntawm sab no - nws nyob tom qab xov hauv paus. Siv cov duab no los txheeb xyuas tus pin mob, qhov chaw nruab nrab, thiab qhov tsis muaj burrs lossis deformation ua ntej sib dhos.
Txiv neej thiab poj niam sib cais (Red Circle Highlight)
Daim duab no qhia tau hais tias tus txiv neej ntsaws (sab laug) thiab poj niam receptacle (txoj cai) sib cais, nrog lub voj voog liab qhia txog kev sib khi O- nplhaib ntawm txiv neej xov hauv paus - thawj IP67 sealing keeb. Ob lub xov hlau (M12 × 1.0) pom tag nrho; liab callout pab nyob rau hauv nrhiav lub foob ua ntej sib dhos, tiv thaiv omission thaum lub sij hawm teb installation. O- cov khoom siv nplhaib yog roj hmab, sib xws nrog -20℃rau +85℃thiab tiv taus cov dej noo thiab tshuaj me me. Cov duab no ua rau pom kev ceeb toom los tshuaj xyuas O-ntiv nplhaib rau kev txiav los yog hnav ua ntej txhua tus mating.
