M18 2 Pin Threaded Waterproof Connector Factories IP67
Dongguan Hejiaxin Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm m18 2 pin threaded waterproof connector factories ip67 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale khoom ruaj khov ua nyob rau hauv Suav teb nov thiab tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Specifications
|
Parameter |
Specification |
|
Kev ntsuas hluav taws xob |
AC 250 V |
|
Tam sim no R ating |
Tsawg dua lossis sib npaug li 10A |
|
Lub sijhawm plug |
1500 |
|
Max Cable OD |
Tsawg dua los yog sib npaug li 10.0mm |
|
Cov qauv Circuit Court |
Parallel |
|
Tiv tauj Resistance |
10mΩ |
|
InsulationStructure |
500MΩat DC 500V |
|
Voltage endurance ntawm chav tsev kub |
1.5 KV TSI |
|
TemperatureRating |
-20℃~ +85 degree |
|
Waterproof Level |
IP67 |
Khoom Specifications
|
Parameter |
Specification |
|
Hlau Khoom |
PVC, Roj Hmab |
|
Jack Khoom |
PVC |
|
Pin Khoom |
Nickle{0}}plated tooj dag |
|
Lub nplhaib sealing |
Roj hmab |

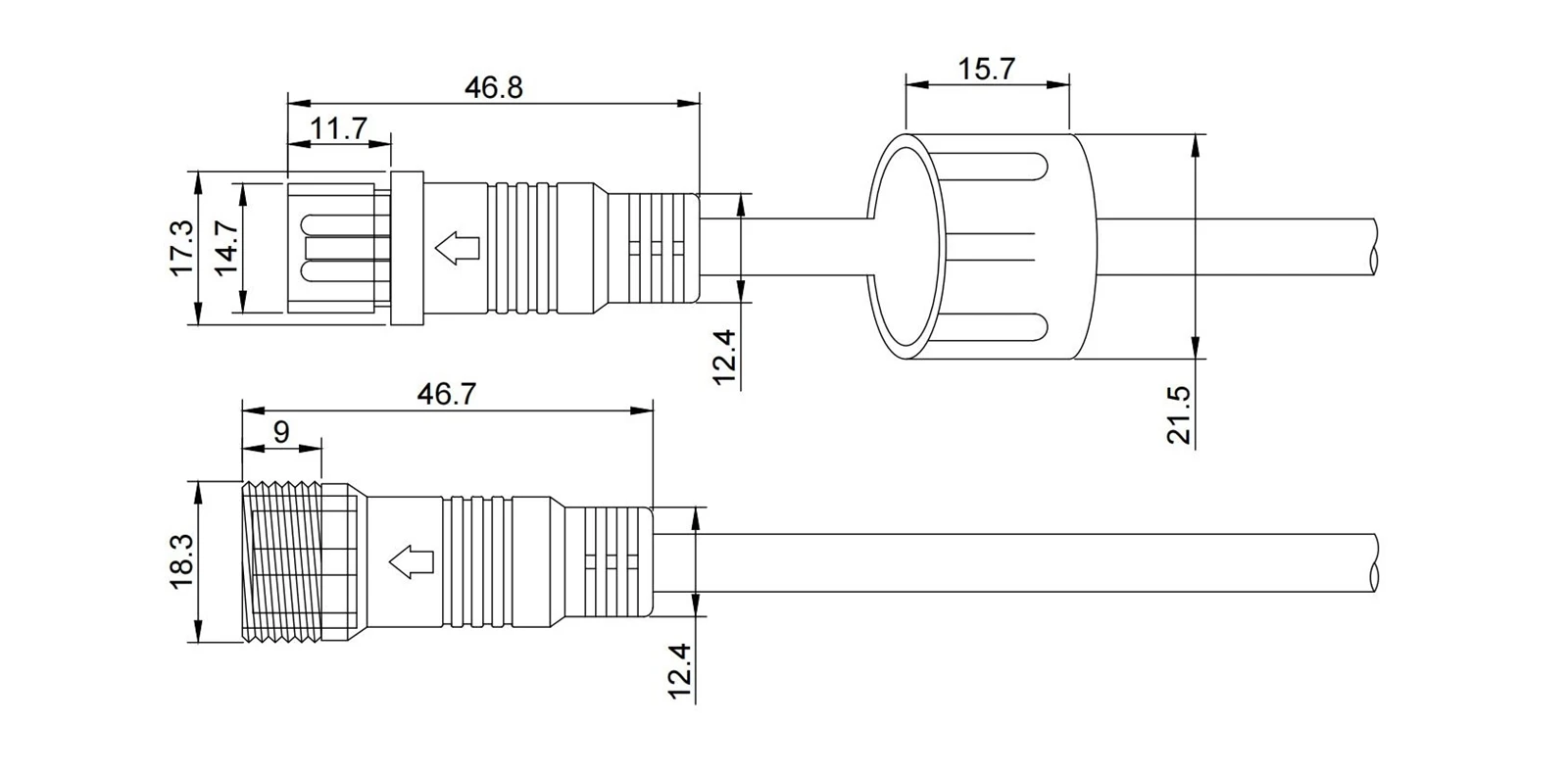

Product Engineering Drawing
Cov ntsiab lus tseem ceeb ntawm CAD - txiv neej ntsaws tag nrho ntev 46.8mm, mating xov 15.7mm, vaj huam sib luag -sab xov 11.7mm. Poj niam receptacle xov qhov tob 17.3mm, mounting txiv ntseej 14.7mm hla flats. Coupling txiv ntseej dav 12.4mm, rov qab-kawg txiv ntseej 9.0mm, nrog rau 21.5mm siv ntawm lub ntsej muag mating thiab 18.3mm hla lub vaj huam sib luag flange. Kuj tseem nco txog 12.4mm qhov ntev ntawm tus poj niam tus Tsov tus tw. Txhua tus siv M18 × 1.0 xov - tib yam li peb cov qauv M18 series, yog li mating plugs yog sib hloov. Max cable OD rau spec. ISO 2768-m kam rau ua. PDF lossis DWG muaj yog tias koj xav tau overlay qhov no rau koj lub vaj huam sib luag layout. Lub tsev ntev, xov profile, lossis cov txiv ntoo loj tuaj yeem hloov kho - tsuas yog qhia peb tias dab tsi tsis ua haujlwm rau koj qhov teeb tsa.
Khoom nthuav dav
Hla-Section ntawm Circular Connector (4-Pin) nrog Mated Pair
Qhov kev saib hla ntu no qhia tau hais tias cov qauv sab hauv ntawm 4-pin voj voog txuas - kev sib cuag, insulator, thiab txoj kev sib khi yog pom meej. Cov duab uas nyob ib sab qhia cov txiv neej thiab poj niam tag nrho kev sib raug zoo, paub meej tias kev sib raug zoo thiab xov kev koom tes. Pab tau rau kev nkag siab txog lub sealing mechanism thiab kev sib cuag qhov tob ua ntej sib dhos.
Sab Saib ntawm Txiv Neej / Poj Niam Nrog Accessories (Liab / Xiav Cables)
Lub kaum sab xis txhaj tshuaj no qhia cov txiv neej plug thiab poj niam receptacle sib cais, nrog rau cov txiv ntseej mounting, sealing washer, thiab liab / xiav PVC xov hlau txuas rau lub terminals. Cov hlau xim coding pab hauv kev txheeb xyuas cov polarity ceev thaum lub sij hawm xaim. Daim duab no ua haujlwm raws li kev siv tswv yim rau kev npaj cable thiab sib dhos ua ntu zus.
